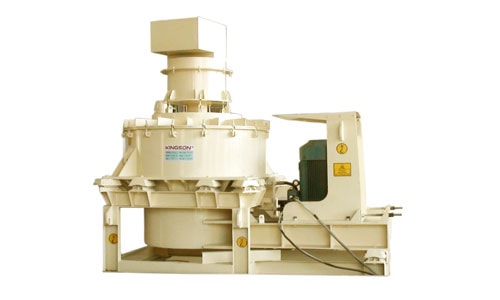

Vertical Shaft Impactor
KINGSON’S Impact Crusher-VSI Crusher incorporates rock-on-rock crushing technology that has revolutionized the aggregates and mineral industries worldwide. It is designed for low services requirement, with ease of lubrication and the assurance of continuous services. KINGSON VSI is an excellent third and fourth stage reduction unit, combing a unique crushing and grinding action in a single machine for the processing of abrasive friable or sticky material.
Key Features:
● Competitive cost, especially when compared with conventional crushing equipment.
● Low service and maintenance requirements, minimum operating and wear cost.
● Produce and product of superior cubical shape due to preferential crushing action.
● Quick balance rotor, rock-on-rock technology minimizes were part requirements.
| S.NO. | MODEL | RECOMMENDED FEED SIZE (MM) | THROUGHPUT CAPACITY (TPH) |
SPEED (RPM) | DRIVE (HP) | APPROX WEIGHT (IN TON) |
| 1 | KVSI-S 1500 | 10-20 | 20-30 | 1500-1750 | 75 | 4.50 |
| KVSI-M 1500 | 20-40 | 30-50 | ||||
| 2 | KVSI-S 1600 | 12-20 | 80-100 | 1300-1500 | 215 | 6.70 |
| KVSI-M 1600 | 20-50 | 100-150 | ||||
| 3 | KVSI-S 1800 | 12-30 | 110-130 | 1200-1400 | 335 | 8.50 |
| KVSI-M 1800 | 30-50 | 110-130 |
