Double Toggle Oil Jaw Crusher

KINGSON is a credible and trustworthy brand known for its high quality and great manufacturing. We also acquired experience over the years in the manufacture of jaw crusher, which is commonly used in mining, quarry and material handling.KINGSON’S Double Toggle Oil lubricated Jaw crusher has a longer life as compared to the jaw plates of other crushers, in light of the fact that KINGSON’S Toggle Oil Jaw Crusher operates on the "Crushing without Rubbing" concept. Also, automatic continuous spray lubrication is provided by coupling pump / vertical oil pump on the basis of toggle-pitman mechanism which enables the crusher to run safely.

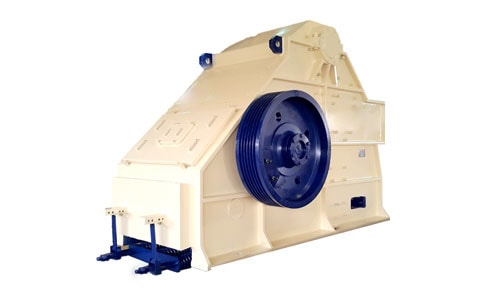

manufacturer of double toggle oil jaw crusher

Key Features:
● The operating mechanism is totally enclosed for maximum life and minimum maintenance.
● Double toggle provides maximum leverage to long stroke eccentric.
● Pull back and springs automatically compensate for wear.
● Wide entry throat ensures easy feeding to the crushing chamber.
● The cast steel swing jaw is balanced to avoid power losses through lifting on crushing.
● Strong steel machine body and other parts are made from certified quality material.

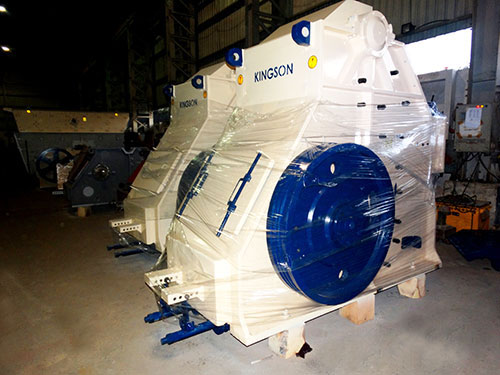

double toggle oil jaw crusher
S.NO. JAW CRUSHER SIZE RECOMMENDED CAPACITY IN TONS / HOUR WITH JAW CLOSED SIDE SETTING RPM DRIVE HP APPROX TOTAL WT.(TON)
INCH MM feed (mm) size (inch) 20MM 25MM 31MM 37MM 50MM 62MM 75MM 87MM 100MM 125MM 150MM 175MM 200MM 225MM 250MM 275MM
0.25" 1" 1.25" 1.50" 2.00" 2.50" 3.00" 3.50" 4" 5" 6" 7" 8" 9" 10" 11"
PRIMARY CRUSHER
1 20"X12" 500x250 275 11       23 31 39 47                   300-320 30 4.06
2 24"X12" 600X300 275 11       28 37 46 56                   300-320 35 5.8
3 24"X14" 600x450 375 15       28 37 46 56 65                 300-320 35 5.8
4 30"X15" 750x375 300 12         46 58 70 81 93               280-300 40 9.1
5 30"X20" 750x500 425 17             70 81 93 116 139           280-300 50 11.8
6 30"X24" 750X600 525 21                 93 118 139           260-280 60 13.7
7 36"X24" 900x600 525 21                 112 139 167 195         260-280 75 21
8 36"X30" 900X750 675 27                 112 139 167 195 220       240-260 100 24.2
9 42"X30" 1050x750 675 27                 130 162 195 228 255       240-260 100 29
10 42"X36" 1050x900 800 32                 130 162 195 228 255 287     280-300 125 34
11 48"X15" 1200x900 325 13             112 129 149 185 220 260         240-260 175 15.9
12 48"x30" 1200x750 675 27                   185 220 260 290       200-220 125 39.5
13 48"x36" 1200x900 800 32                   185 220 260 290 325     200-220 150 43.5
14 60"X48" 1500x1200 1100 44                     275 325 361 405 444 500 200-220 200 72
SECONDARY CRUSHER
15 22"x09" 550x225 200 8 13 16 20 24 32 40                     320-340 30 4.3
16 30"x09" 750x225 200 8 18 22 27 33 44 55                     320-340 40 6.3
17 36"X06" 900x150 125 5 22 27 33 40 56                       320-340 40 7
18 36"X08" 900x200 175 7 22 27 33 40 56                       320-340 40 8
19 42"X06" 1050x150 125 5 26 32 40 47 63                       320-340 50 9.5
20 42"X09" 1050x225 200 8 26 32 40 47 63                       320-340 50 10
21 48"X06" 1200x150 125 5 29 36 45 54 72                       320-340 60 11.5
22 48"x08" 1200x200 175 7 29 36 45 54 72                       320-340 60 11.8
23 60"x08" 1500x200 175 7 37 45 56 66 88                       320-340 75 16.5

Double Toggle Oil Jaw Crusher
The output is based on average hard dry quarts of similar rock weighing at least 100 ibs/cuft when continuous feed of graded size with fines removed and is subject to variation depending on working condition.
