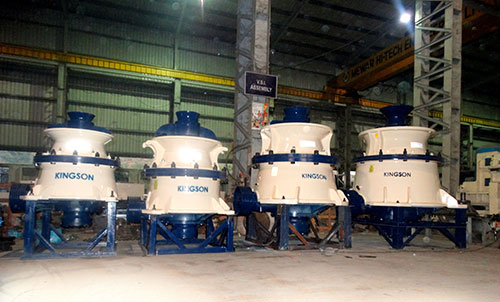

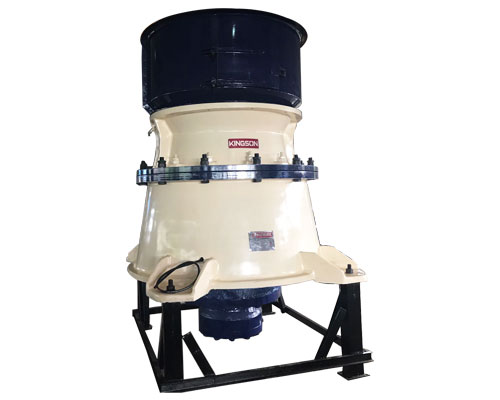

Mewar Hitech is proud to reveal that it is one of the top Cone Crusher manufacturers providing the highest quality cone crusher for the crushing of feed materials.We don't simply concentrate on helping our clients in getting their ideal outcomes yet additionally on making the procedure progressively solid, financially savvy, and flexible. Along these lines, we resolve to give you the most lucrative outcome.
Key Features:
● Higher crushing ratio and production efficiency result in lower spare part consumption and lower operating cost.
● Easy maintenance from top reduces downtime.Improved cavity architecture helps in feed opening maintenance.
● The tangential and radial forces result in uniform pressure and product of uniform shape.
● Thin oil lubrication increases the life of consumable parts.
S.NO. | MODEL | PRODUCT TYPE | RECOMMENDED FEED SIZE | THROUGH CAPACITIES IN TON / AT CLOSED SIDE SETTING IN MM | RPM | DRIVE HP | APPROX WEIGHT (IN TON) |
||||||||
MM | INCH | 6 | 8 | 10 | 15 | 20 | 25 | 30 | 40 | ||||||
1 | KCC 750 | FINE | 20 | 0.8 | 10-20 | 15-25 | 25-30 | 325-400 | 100 | 6.00 | |||||
COARSE | 80 | 3.2 | 30-40 | 40-50 | 50-60 | 250-325 | 6.00 | ||||||||
2 | KCC 750 N | FINE | 60 | 2.4 | 25-40 | 25-50 | 45-55 | 325-400 | 120 | 8.00 | |||||
COARSE | 140 | 5.6 | 45-55 | 60-70 | 75-100 | 90-125 | 120-150 | 250-325 | 8.00 | ||||||
3 | KCC 900 | FINE | 60 | 2.4 | 35-40 | 45-65 | 60-80 | 325-400 | 175 | 11.00 | |||||
COARSE | 180 | 7.2 | 60-70 | 80-100 | 100-125 | 125-150 | 160-200 | 250-325 | 11.00 | ||||||
4 | KCC 1000 | FINE | 60 | 2.4 | 40-60 | 55-75 | 70-90 | 325-400 | 215 | 13.00 | |||||
COARSE | 220 | 8.8 | 75-90 | 100-120 | 125-150 | 150-180 | 200-240 | 250-325 | 13.00 | ||||||
5 | KCC 1200 | FINE | 60 | 2.4 | 50-70 | 70-90 | 90-110 | 325-400 | 265 | 16.00 | |||||
COARSE | 220 | 8.8 | 90-110 | 125-150 | 150-180 | 180-220 | 240-290 | 250-325 | 16.00 |
