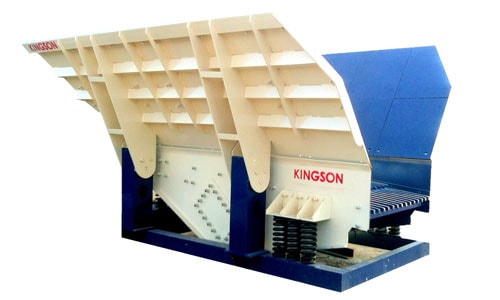

The Vibro Feeder is used for transferring the large size materials and granular material from the hopper to the receiving device uniformly, periodically and continuously in the production flow and to feed material into the crusher continuously and uniformly to the screen. Capacity figures are indicative fir material of 99.88 IBS / CU FT bulk density. The actual capacity result may vary by depending upon the feed, RPM, grading, grit and moisture, etc.

Feeders Manufacturers and Suppliers
S.NO. MACHINE MACHINE SIZE MODEL DRIVW HP  MAXIMUM FEED SIZE (MM) CAPACITY (TPH) APPROX WEIGHT
(IN TON)
MM INCH
1 VIBRO
GRIZZLY FEEDER		 1000X3000 40x120 KVF 1030 3HP- 2 NOS 500 125-150 6.00
2 1200X3000 48x120 KVF 1230 3HP- 2 NOS 600 150-200 6.50
3 1200X4000 48x160 KVF 1240 5HP- 2 NOS 750 200-250 7.00
4 1500X5000 60x60 KVF 1550 7.5HP- 2 NOS 700 300-350 8.00
1 VIBRO
PAN FEEDER		 800X1600 32x64 KVF 816 1HP- 2 NOS 175 50-80 0.80
2 800X2000 32X80 KVF 820 1.5HP- 2 NOS 200 75-100 1.10
3 1000X2000 40X80 KVF 1020 2HP- 2 NOS 250 175-200 1.20
