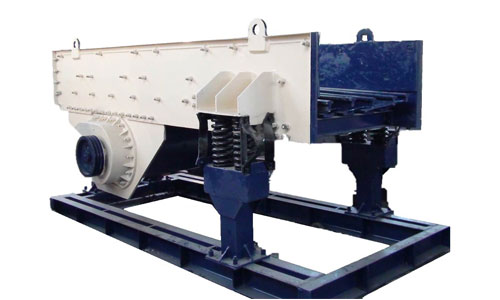

Single Shaft Feeder
KINGSON’S Grizzly is a massive welded frame construction to withstand extreme shock loads. These are basically conveying decks with a combination of pan and grizzly and back & side renewable liners. Grizzly Feeder is non-stopping and ventured grizzly, independently inexhaustible, for material inclining and simple fines passing.
It vibrating using installed consists of two contra-rotating eccentric shafts, geared together in oil-bath. The setting of amplitude is affected at the still machine by varying unbalance.
Actuation is by 4-pole motor and V-belts drive. Special steel springs are arranged for the installation on concrete or steel supporting structure.
Size Available:
● Width: 800mm to 1500mm
● Length: 2000mm to 6000mm
● Capacity: 100 to 600 (TPH)
| S.NO. | MODEL | MACHINE SIZE | DRIVW HP | CAPACITY (TPH) | APPROX WEIGHT (IN TON) |
|
| MM | INCH | |||||
| 1 | KSSF 1240 | 1200X4000 | 48 X 160 | 10 | 150 | 2.68 |
| 2 | KVF 1230 | 1200X3000 | 48 X 120 | 7.5 | 125 | 2.00 |
| 3 | KVF 1224 | 1200X2400 | 48 X 96 | 7.5 | 100 | 1.80 |
| 4 | KVF 1020 | 1000X2000 | 40 X 80 | 5 | 75 | 1.40 |
| 5 | KVF 1030 | 1000X3000 | 40 X 120 | 7.5 | 100 | 1.85 |
| 6 | KVF 918 | 900X1800 | 36 X 72 | 3 | 40 | 1.30 |
| 7 | KVF 924 | 900X2400 | 36 X 96 | 5 | 50 | 1.50 |
| 8 | KVF 816 | 800X1600 | 32 X 64 | 3 | 25 | 1.00 |
