Horizontal Shaft Impactor

"KINGSON" series of Horizontal Shaft impactor is widely applied in mining, energy and chemical industry. Horizontal Shaft Impactor has reasonable structure, high productivity, easy maintenance and safe performance. The most outstanding benefit of this machine is that its finished product is in good cubic shape, non-tensile and cranny.

Feature
High reduction ratio and crushing efficiency, no-board connection; with blow bar of chrome Steel.

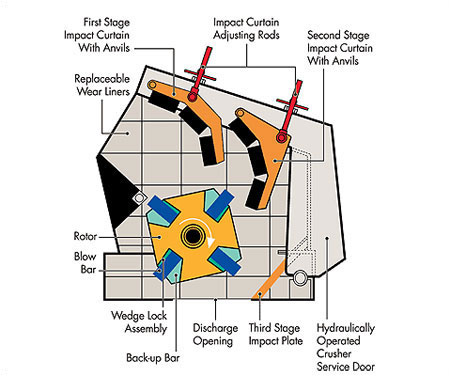

Impact plate has special shape, with easy maintenance and reliable operation, connected with locking sleeve assembly and the blow bar of high chrome steel.
Hydraulic or hand opening, impact plate with a special shape, crushing product with cubical shape.

Horizontal Shaft Impactor Hsi
Known for the most outstanding advantage of the delivering goods cubic shapes, non-tensile and cranny product. These series of impact crusher are widely applied in mining, transportation, energy, construction and chemical industries apart from the first choice of crushing industries.

S.NO. MODEL MACHINE SIZE RECOMMENDED MAXIMUM FEED SIZE THROUGHPUT CAPACITY
(TPH)
ROTOR (RPM) DRIVE HP APPROX TOTAL W.T.
(IN TON)
MM INCH MM INCH
1 KHSI-S 88 800X800 32x32 40 1.6 34-40 900-1000 75 7.00
KHSI-M 88 200 8 50-70 750-850
2 KHSI-S 1010 1000X1000 40x40 40 1.6 70-90 800-900 150 11.00
KHSI-M 1010 250 10 100-200 650-750
3 KHSI-S 1212 1200x1200 48x48 40 1.6 100-125 700-800 215 13.00
KHSI-M 1212 300 12 140-300 600-700
4 KHSI-S 1515 1500X1500 60x60 40 1.6 140-170 650-750 335 15.00
KHSI-M 1515 400 16 180-350 550-650
5 KHSI-S 1320 1350X2000 54X80 40 1.6 180-220 750-850 415 16.00
KHSI-M 1320 350 14 250-500 600-700
