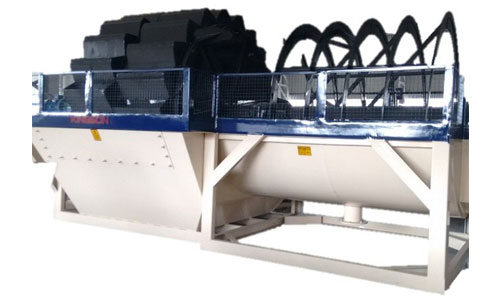

Sand Washer

Sand Washers use pressure hydraulic separation with water as the medium to clean and organise sand particles by weight. Bigger particles weigh more, sink and are gathered in the base of the trough. The sand particles are transported to the slanted release end by a double pitched steel spiral shaft with replaceable cast wear shoes. The lighter undesirable particles float to the surface of the claim settling pool and are released over the weirs. Dewatering happens as the winding shaft transports the settled sand up to the grade of the trough and is released.

Key features:
● Makes clean high-quality construction sand.
● Variable spiral speed and water input control product gradation.
● Gear reducers are capable of high reduction ratios to achieve low spiral speeds and high torque outputs.
● A head-end shaft to gearbox coupling ensures proper shaft alignment.
● A flexible spider coupling protects the rotating shaft from thrust loads and gear reducer against vibrations
● Lower end shaft coupling ensures precise alignment and an easy method for removing the shaft for maintenance.

S.NO. MODEL WHEEL DIAMETER (MTR) NUMBER OF BUCKET MAXIMUM FEED SIZE MACHINE TANK CAPCITY (KGS) WATER TANK CAPCITY MOTOR POWER CAPACITY (TPH)
1 KSW 50 2.27 34 <8 3500 4500 5.5KW 40-55
2 KSW 100 2.50 38 <8 5000 5000 7.5KW 55-75
3 KSW 150 2.75 42 <8 7000 6000 11KW 75-110
4 KSW 200 3.10 48 <8 8200 15000 15KW 110-150
