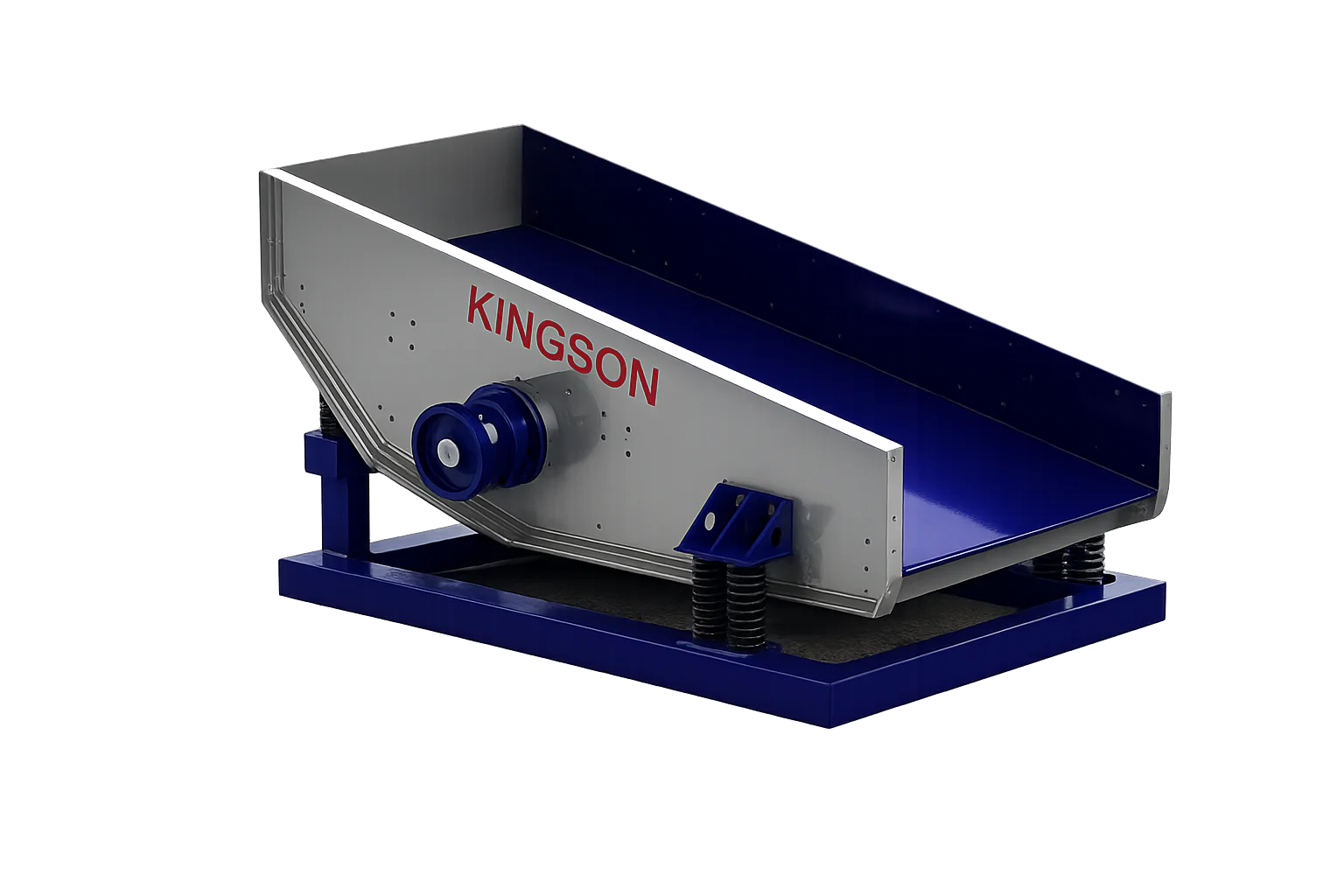

Single Shaft Feeders
Engineered for Maximum Tonnage • Built to Last
Heavy-duty industrial crushing and material handling system designed for high reduction ratios, maximum continuous uptime, and reliable operating efficiency in extreme quarry conditions.
ENGINEERED FOR PRECISION, CONTINUOUS TONNAGE & HEAVY DUTY LIFE

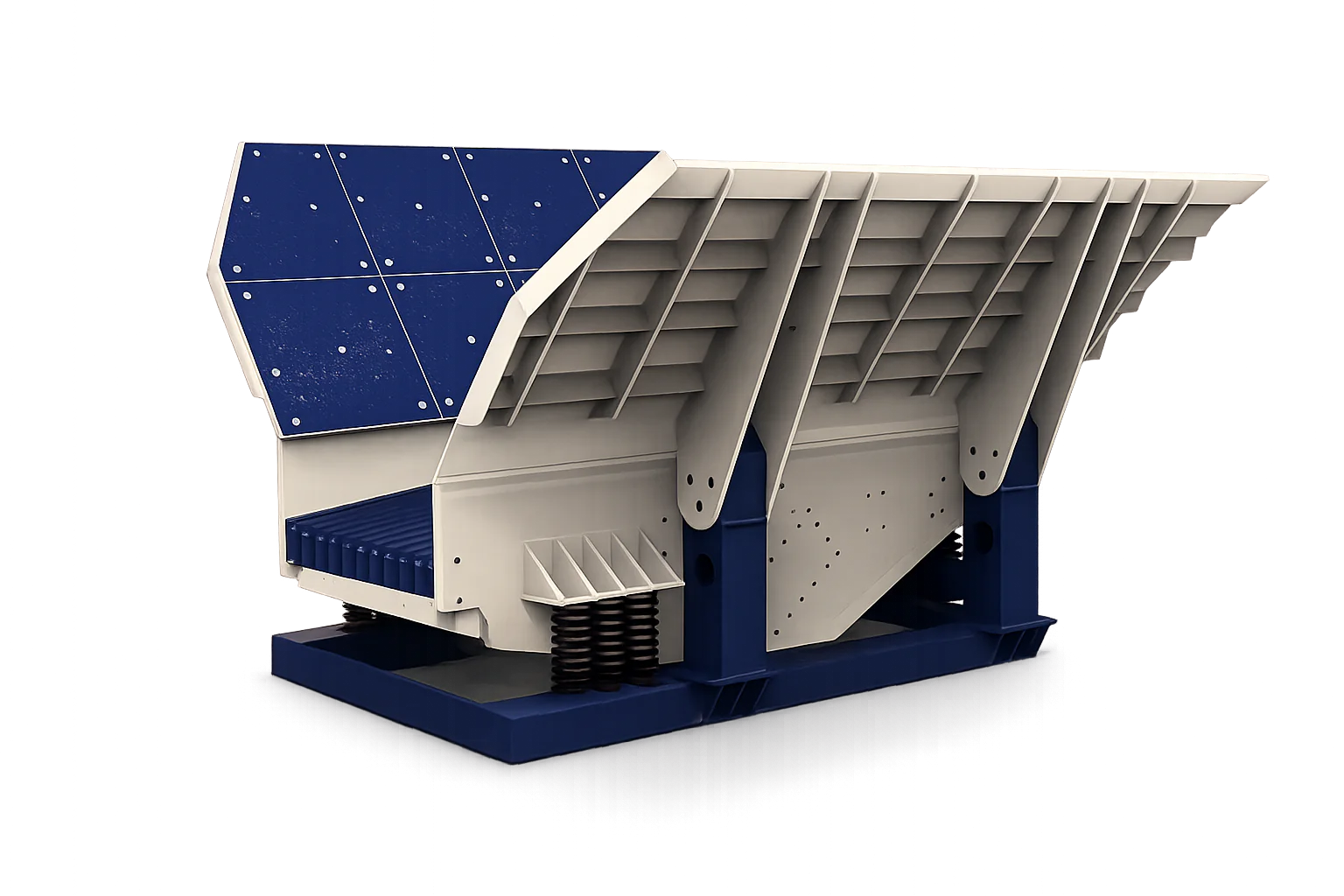

KINGSON'S Grizzly is a massive welded frame construction to withstand extreme shock loads. These are basically conveying decks with a combination of pan and grizzly and back & side renewable liners. Grizzly Feeder is non-stopping and ventured grizzly, independently inexhaustible, for material inclining and simple fines passing. It vibrating using installed consists of two contra-rotating eccentric shafts, geared together in oil-bath. The setting of amplitude is affected at the still machine by varying unbalance. Actuation is by 4-pole motor and V-belts drive. Special steel springs are arranged for the installation on concrete or steel supporting structure.
Core Design Highlights & Mechanisms:

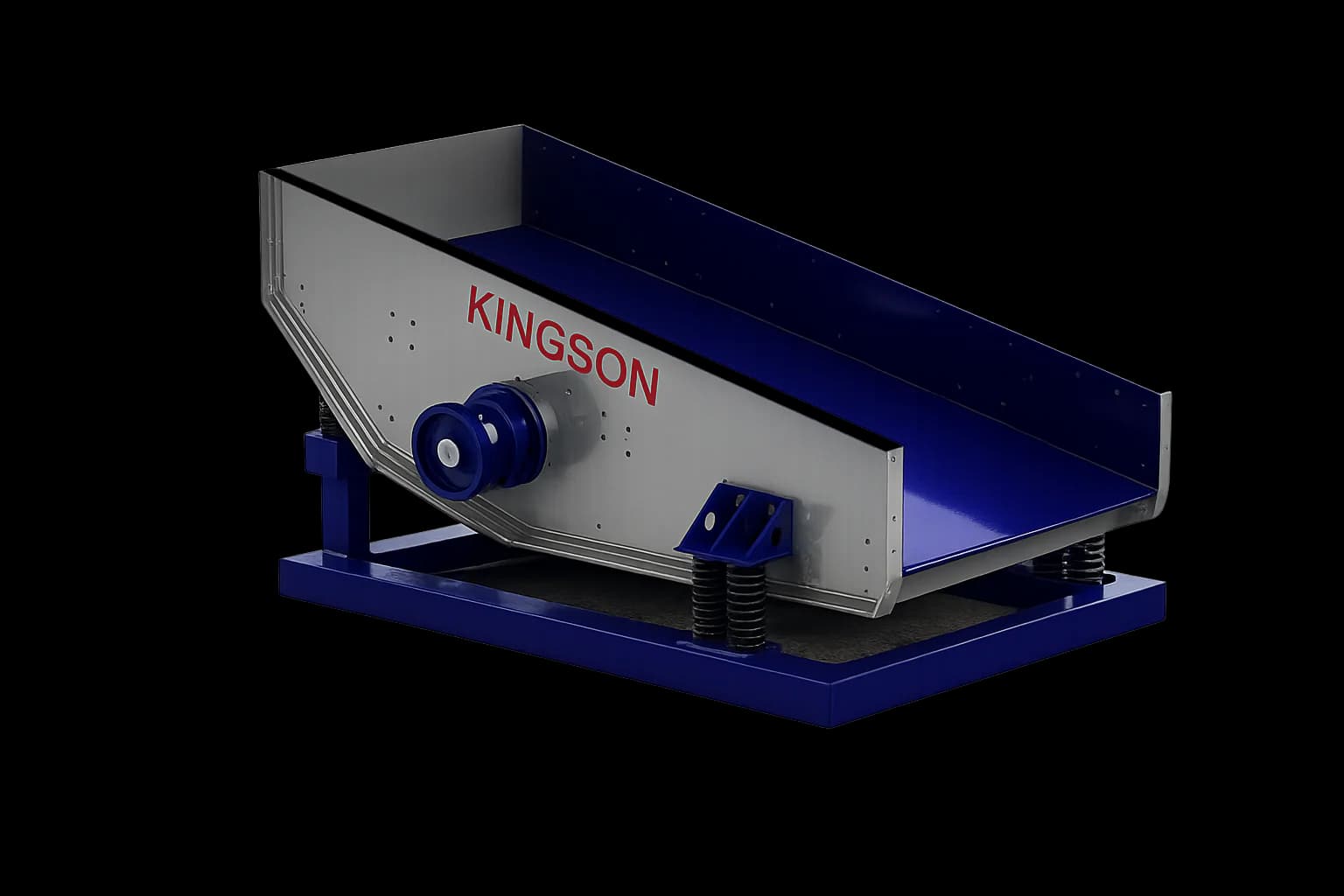

Single Shaft Feeders
Rotate 360° • Zoom • Inspect
VERSATILE INDUSTRIAL OPERATING ENVIRONMENTS
Designed to operate under extreme crushing forces across diverse mineral processing sectors.
MACHINE SPECIFICATIONS & TONNAGE CHART
Detailed dimensional, power, and capacity metrics for model selection.
| S.No | Model | Machine Size (mm) | Machine Size (Inch) | Drive HP | Capacity (TPH) | Approx Weight (in Ton) |
|---|---|---|---|---|---|---|
| • Technical Specifications | ||||||
| 1 | KSSF 1240 | 1200X4000 | 48 x 160 | 10 | 150 | 2.68 |
| 2 | KVF 1230 | 1200X3000 | 48 x 120 | 7.5 | 125 | 2.00 |
| 3 | KVF 1224 | 1200X2400 | 48 x 96 | 7.5 | 100 | 1.80 |
| 4 | KVF 1020 | 1000X2000 | 40 x 80 | 5 | 75 | 1.40 |
| 5 | KVF 1030 | 1000X3000 | 40 x 120 | 7.5 | 100 | 1.85 |
| 6 | KVF 918 | 900X1800 | 36 x 72 | 3 | 40 | 1.30 |
| 7 | KVF 924 | 900X2400 | 36 x 96 | 5 | 50 | 1.50 |
| 8 | KVF 816 | 800X1600 | 32 x 64 | 3 | 25 | 1.00 |
DOWNLOAD PRODUCT BROCHURES & LAYOUTS
REQUEST PRICING & CUSTOM FLOWSHEET DESIGN
Interested in integrating the Single Shaft Feeders into your crushing plant? Submit your application requirements below.
