Double Toggle Oil Jaw Crusher
Engineered for Maximum Tonnage • Built to Last
Heavy-duty industrial crushing and material handling system designed for high reduction ratios, maximum continuous uptime, and reliable operating efficiency in extreme quarry conditions.
ENGINEERED FOR PRECISION, CONTINUOUS TONNAGE & HEAVY DUTY LIFE
KINGSON is a credible and trustworthy brand known for its high quality and great manufacturing. We also acquired experience over the years in the manufacture of jaw crusher, which is commonly used in mining, quarry and material handling. KINGSON'S Double Toggle Oil Lubricated Jaw Crusher has a longer life as compared to the jaw plates of other crushers, in light of the fact that KINGSON's Toggle Jaw Crusher operates on the 'Crushing without Rubbing' concept. Also, automatic continuous spray lubrication is provided by coupling pump / vertical oil pump on the basis of toggle-pitman mechanism which enables the crusher to run safely.
Core Design Highlights & Mechanisms:

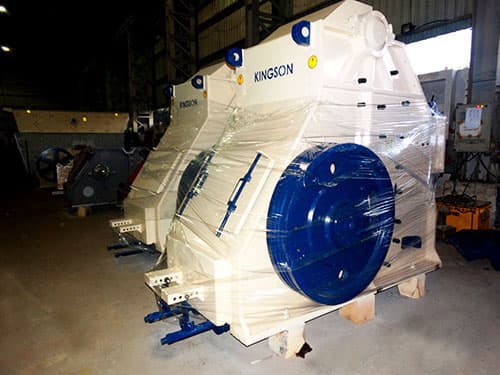

Double Toggle Oil Jaw Crusher
Rotate 360° • Zoom • Inspect
VERSATILE INDUSTRIAL OPERATING ENVIRONMENTS
Designed to operate under extreme crushing forces across diverse mineral processing sectors.
ON-SITE INSPECTION & WORKING VIDEO
MACHINE SPECIFICATIONS & TONNAGE CHART
Detailed dimensional, power, and capacity metrics for model selection.
| S.No | Size (Inch) | Size (MM) | Rec. Feed (mm) | Gape (mm) | Capacity CSS Options (TPH) | RPM | Power (HP) | Weight (Tons) |
|---|---|---|---|---|---|---|---|---|
| • Primary Crusher | ||||||||
| 1 | 20"x12" | 500x300 | 270 | 11 | 0.25": 22 | 1": 31 | 1.25": 39 | 1.50": 47 | 300-320 | 30 | 4.0 |
| 2 | 24"x12" | 600x300 | 270 | 11 | 0.25": 22 | 1": 31 | 1.25": 39 | 1.50": 47 | 2.0": 56 | 300-320 | 35 | 5.8 |
| 3 | 24"x15" | 600x400 | 275 | 12 | 0.25": 22 | 1": 31 | 1.25": 39 | 1.50": 47 | 2.0": 56 | 2.50": 65 | 300-320 | 35 | 5.8 |
| 4 | 30"x15" | 750x375 | 300 | 13 | 1.25": 46 | 1.50": 53 | 2.0": 70 | 2.50": 81 | 3.0": 90 | 300-320 | 40 | 9.1 |
| 5 | 30"x20" | 750x500 | 425 | 17 | 2.0": 70 | 2.50": 81 | 3.0": 90 | 3.50": 116 | 4.0": 130 | 300-320 | 50 | 11.8 |
| 6 | 36"x24" | 900x600 | 525 | 21 | 2.50": 80 | 3.0": 116 | 3.50": 130 | 300-320 | 60 | 13.7 |
| 7 | 36"x24"H | 900x600 | 525 | 21 | 3.50": 142 | 4.0": 155 | 5.0": 167 | 6.0": 195 | 300-320 | 75 | 21.0 |
| 8 | 38"x30" | 950x750 | 635 | 23 | 4.0": 167 | 5.0": 175 | 6.0": 195 | 7.0": 225 | 240-260 | 100 | 24.0 |
| 9 | 42"x30" | 1050x750 | 635 | 23 | 4.0": 170 | 5.0": 180 | 6.0": 195 | 7.0": 225 | 8.0": 265 | 240-260 | 100 | 26.0 |
| 10 | 42"x36" | 1050x900 | 800 | 32 | 4.0": 170 | 5.0": 180 | 6.0": 195 | 7.0": 225 | 8.0": 265 | 9.0": 285 | 220-240 | 125 | 31.0 |
| 11 | 48"x36" | 1200x900 | 800 | 32 | 2.00": 112 | 2.50": 120 | 3.00": 135 | 3.50": 155 | 4.0": 220 | 5.0": 280 | 220-240 | 125 | 32.0 |
| 12 | 48"x42" | 1200x1050 | 975 | 39 | 4.0": 220 | 5.0": 280 | 6.0": 289 | 200-220 | 150 | 39.5 |
| 13 | 48"x48" | 1200x1200 | 1100 | 44 | 4.0": 220 | 5.0": 280 | 6.0": 289 | 8.0": 325 | 200-220 | 150 | 43.5 |
| 14 | 60"x48" | 1500x1200 | 1100 | 44 | 5.0": 275 | 6.0": 325 | 7.0": 365 | 8.0": 390 | 10.0": 444 | 12.0": 520 | 180-200 | 200 | 72.0 |
| • Secondary Crusher | ||||||||
| 15 | 12"x8" | 300x200 | 200 | 6 | 0.25": 12 | 1": 16 | 1.25": 24 | 1.50": 34 | 2.0": 40 | 320-340 | 20 | 4.2 |
| 16 | 20"x8" | 500x200 | 200 | 6 | 1.0": 18 | 1.25": 22 | 1.50": 27 | 2.0": 33 | 2.50": 44 | 3.0": 55 | 320-340 | 30 | 6.0 |
| 17 | 30"x8" | 750x200 | 125 | 5 | 1.0": 22 | 1.25": 27 | 1.50": 33 | 2.0": 40 | 2.50": 54 | 320-340 | 40 | 7.0 |
| 18 | 36"x8" | 900x200 | 125 | 5 | 1.0": 22 | 1.25": 27 | 1.50": 33 | 2.0": 40 | 2.50": 54 | 320-340 | 40 | 8.0 |
| 19 | 42"x8" | 1050x200 | 125 | 5 | 1.25": 28 | 1.50": 35 | 2.0": 42 | 2.50": 58 | 320-340 | 50 | 9.5 |
| 20 | 42"x10" | 1050x250 | 200 | 8 | 1.25": 28 | 1.50": 35 | 2.0": 42 | 2.50": 58 | 320-340 | 50 | 10.0 |
| 21 | 48"x8" | 1200x200 | 125 | 5 | 1.50": 38 | 2.0": 50 | 2.50": 64 | 3.00": 72 | 320-340 | 60 | 11.5 |
| 22 | 48"x10" | 1200x250 | 200 | 8 | 1.50": 51 | 2.00": 68 | 2.50": 82 | 3.00": 92 | 320-340 | 60 | 11.8 |
| 23 | 48"x12" | 1200x300 | 200 | 8 | 2.00": 62 | 2.50": 82 | 3.00": 88 | 3.50": 98 | 320-340 | 75 | 14.8 |
The output is based on average hard dry quarry of a solid rock weighing at least 100 lb/cu.ft when continuous feed of graded size with fines removed and is subject to variation depending on working conditions.
