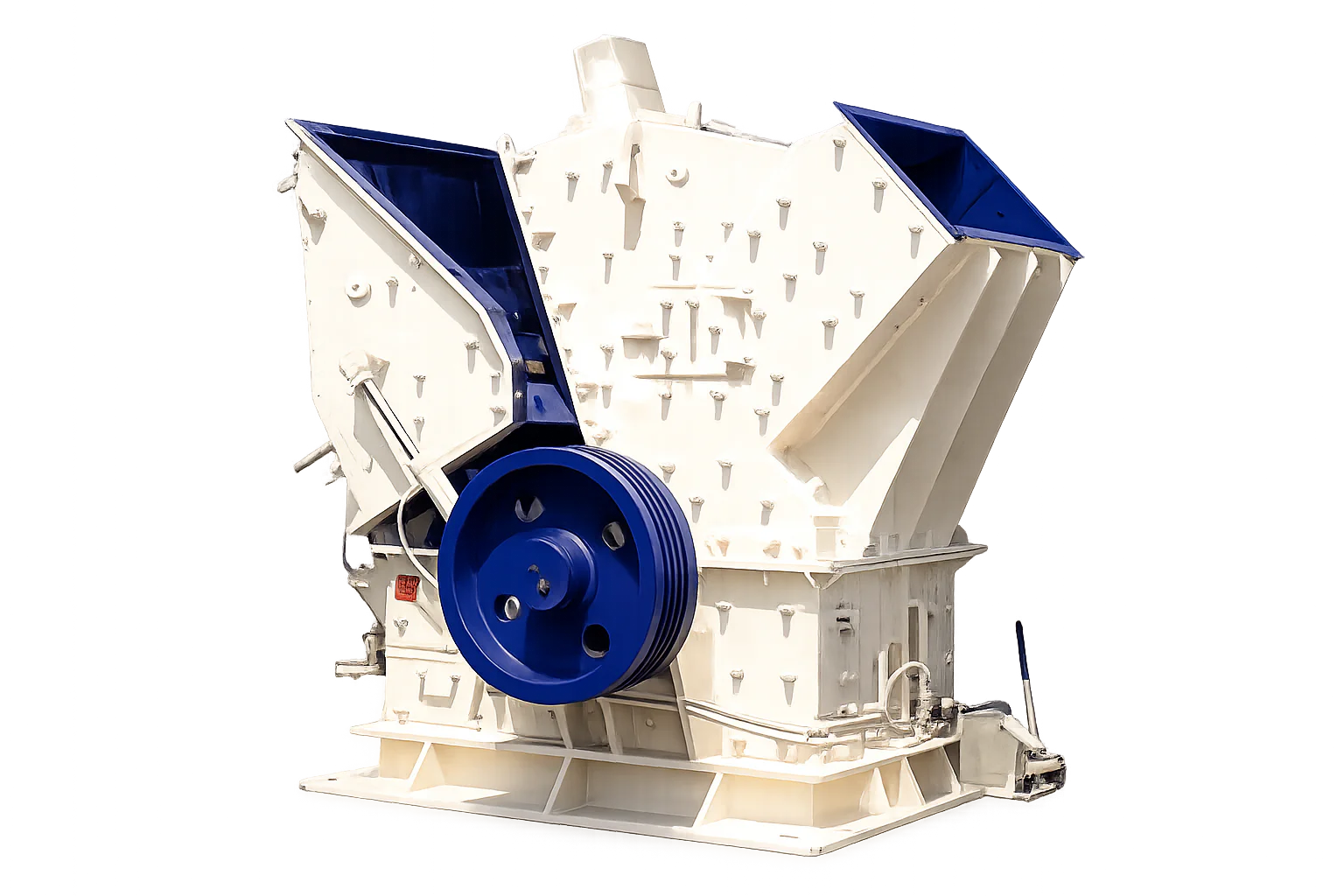

Sand Making Machine
Engineered for Maximum Tonnage • Built to Last
Heavy-duty industrial crushing and material handling system designed for high reduction ratios, maximum continuous uptime, and reliable operating efficiency in extreme quarry conditions.
ENGINEERED FOR PRECISION, CONTINUOUS TONNAGE & HEAVY DUTY LIFE
KINGSON'S Sand Making Machine is widely used for fines size reduction of mineral product including metal and non-metal ore, fireproof material, bauxite, diamond dust, glass raw materials, architectural materials, artificial Materials of all sorts of metal ores.
Core Design Highlights & Mechanisms:
Sand Making Machine
Rotate 360° • Zoom • Inspect
VERSATILE INDUSTRIAL OPERATING ENVIRONMENTS
Designed to operate under extreme crushing forces across diverse mineral processing sectors.
MACHINE SPECIFICATIONS & TONNAGE CHART
Detailed dimensional, power, and capacity metrics for model selection.
| S.No | Machine Size (mm) | Machine Size (Inch) | Model | Feed Size MM | Feed Size Inch | Output TPH (Min/Max) | RPM | Drive HP | Approx Total W.T. (in Ton) |
|---|---|---|---|---|---|---|---|---|---|
| • Technical Specifications | |||||||||
| 1 | 800x800 | 32x32 | KSMM88 | 20 | 0.8 | 10mm-20mm | 650-750 | 75 | 4.6 |
| 2 | 1000x1000 | 40x40 | KSMM1010 | 25 | 1.0 | 20mm-35mm | 650-700 | 150 | 12.0 |
| 3 | 1200x1200 | 48x48 | KSMM1212 | 30 | 1.2 | 30mm-60mm | 600-650 | 200 | 15.0 |
DOWNLOAD PRODUCT BROCHURES & LAYOUTS
REQUEST PRICING & CUSTOM FLOWSHEET DESIGN
Interested in integrating the Sand Making Machine into your crushing plant? Submit your application requirements below.
